Raj Agro Industries - Spring Steel Specialists

About Us

Our Strengths

Competitive pricing

Quality assured products

Time bound delivery

Wide distribution network

Our Journey Since 2001

We have been in the iron & steel industry since 2001 under the name of Raj Steel Agro Industry. A thousand mile journey starts with one single step. Our quality brought laurels and goodwill instantly and the rest is history.

Strong values of a family-run enterprise backed by industry's most talented professionals, along with the entry of the third generation, led to the foundation of Raj Agro Industries in 2010.

We specialize in manufacturing high-quality Spring Steel Flats with a state-of-the-art facility spread over 13,500 sq. yards in Mandi Gobindgarh (Punjab), North India. We're one of the first plants in the region operating on PNG gas, with the industry's best production and technical staff having over a decade of experience.

Our quality and fair business practices have earned us reputation and appreciation from clients in core industries like Automobile and Railways.

Contact Us

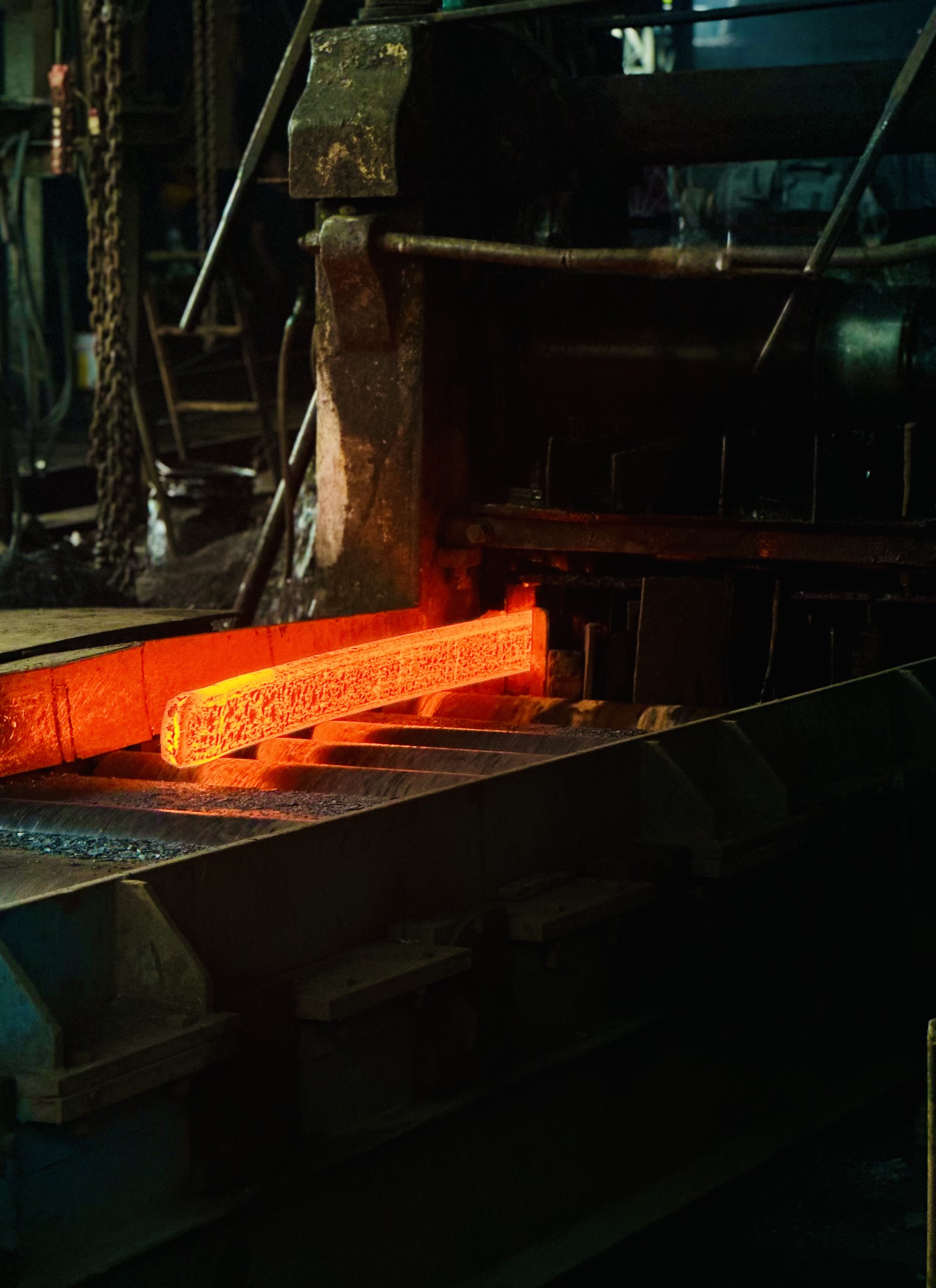

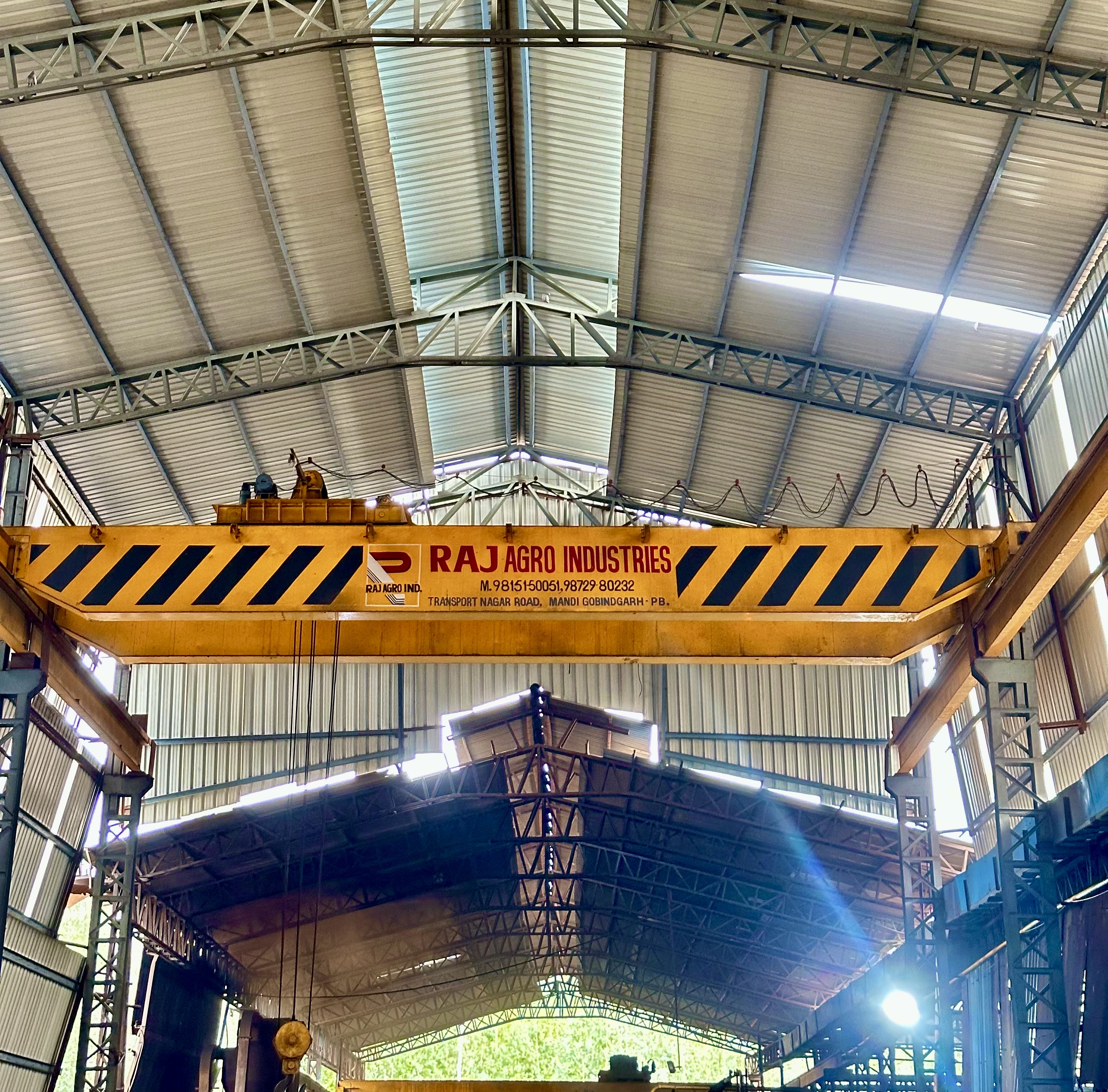

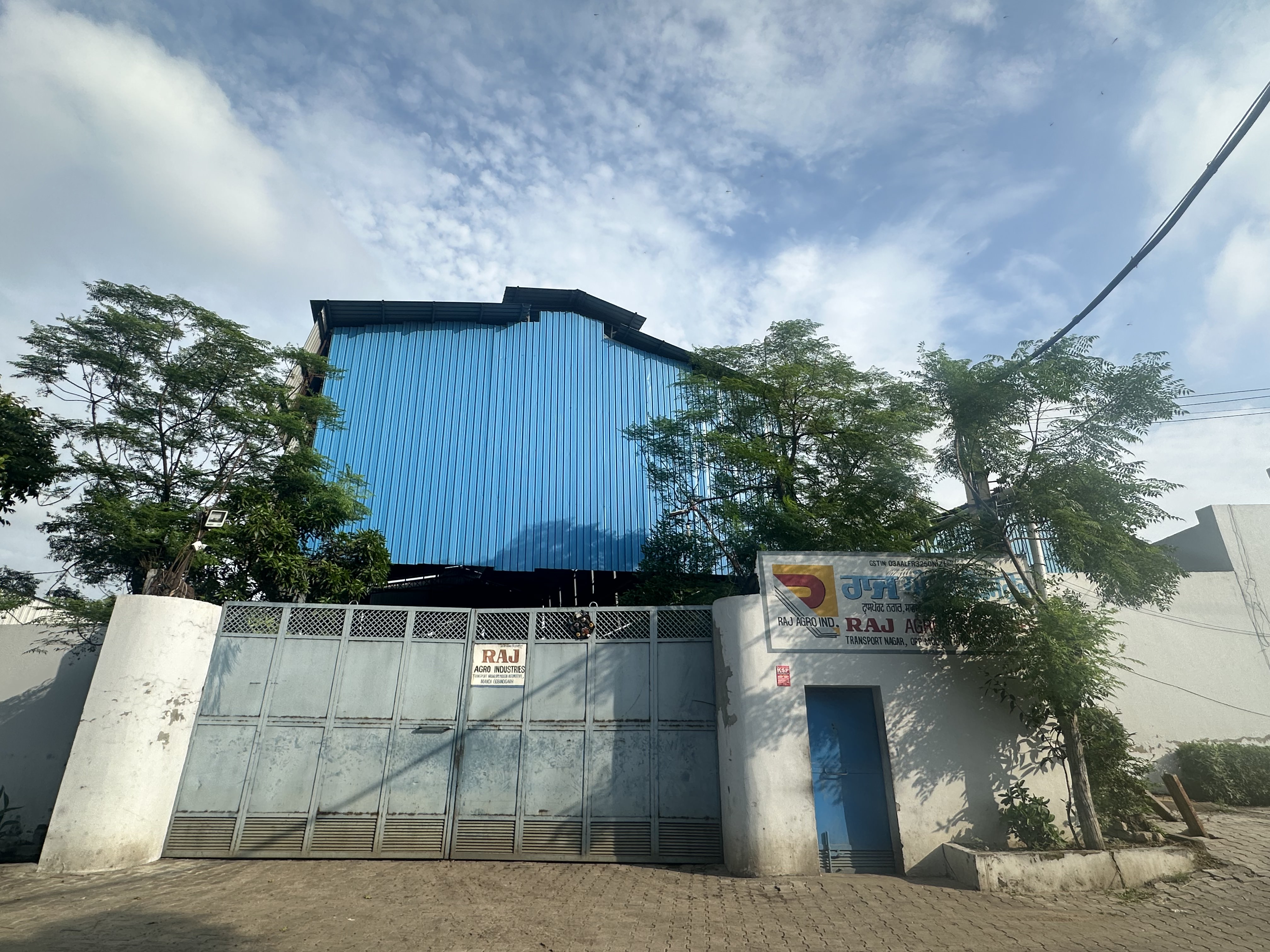

Manufacturing Facilities

Spring steel refers to high carbon or alloy steel used in the manufacture of springs. The steel is heat-treated to develop specific properties, making it ideal for applications requiring the ability to return to its original shape. Our Spring steel flats are produced using advanced technology for precisely controlled thickness.

Contact Us

Our Products

CHEMICAL COMPOSITION OF SPRING STEEL FLATS

Grade	%C	%Mn	%Si	%S, max	%P, max	%Cr	%Other
51CrV4	0.47-0.55	0.70-1.10	0.15-0.40	0.025	0.025	0.90-1.20	Al: 0.04 max
EN 47A	0.45-0.55	0.50-0.80	0.50 max	0.05	0.05	0.80-1.20	V: 0.15 min
50CrV4	0.47-0.55	0.70-1.10	0.15-0.40	0.03	0.03	0.90-1.20	V: 0.10-0.25
SUP 11A	0.56-0.64	0.65-0.95	1.50-2.00	0.035	0.035	0.70-1.00	V: 0.10-0.20
SUP 9	0.56-0.60	0.65-0.95	1.50-2.00	0.035	0.035	0.65-0.95	B: 0.0005 min
SUP 6	0.50-0.60	0.70-1.00	1.50-2.00	0.045	0.045	0.20-0.40	Al: 0.04 max
60SiC7	0.55-0.65	0.70-1.00	1.50-2.00	0.045	0.045	0.20-0.40	Al: 0.04 max
65Si7	0.60-0.65	0.70-1.00	1.50-2.00	0.045	0.045	0.20-0.40	Al: 0.04 max
60Si7	0.55-0.65	0.70-1.00	1.50-2.00	0.045	0.045	0.20-0.40	Al: 0.04 max
65SiC7	0.60-0.65	0.70-1.00	1.50-2.00	0.045	0.045	0.20-0.40	Al: 0.04 max
EN45A	0.58-0.65	0.80-1.00	1.70-2.00	0.05	0.05	0.20 max

Width Tolerance

Nominal Width	Tolerance Width
OVER 38 UP TO 50	+7-0.30
OVER 50 UP TO 75	+/-0.50
OVER 75 UP TO 100	+/-0.70
OVER 100 UP TO 125	+/-0.90

Thickness Tolerance

< = 10 MM	> = 10 MM
+/-0.15	+/-0.15
+/-0.15	+/-0.20
+/-0.20	+/-0.25
+/-0.25	+/-0.40

Maintains Metallurgical parameters such as inclusion rating (as per IS:4163) & Grain size (as per E:112)

SPRING STEEL FLAT SIZES

SUP 9	38x6.2 mm to 80x13mm
SUP 11A	80X15 mm to 100x40mm
Boron Steel	50x7 mm to 80x7 - 100x8 mm
EN 45A	38X6.2 mm to 100x40 mm

Sizes can be varied according to customer's requirement

Contact Us

Mark

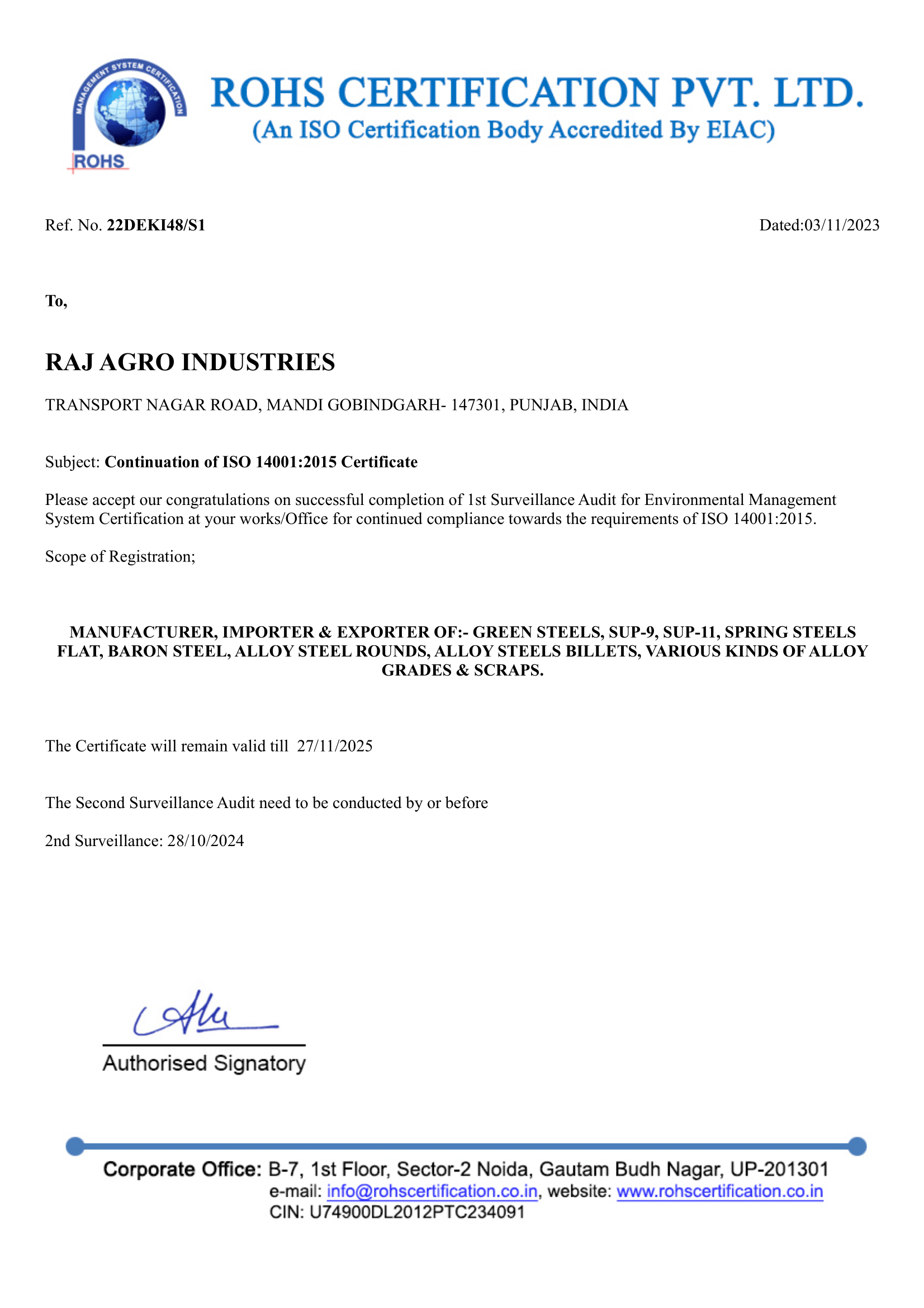

Certificate

Quality Management

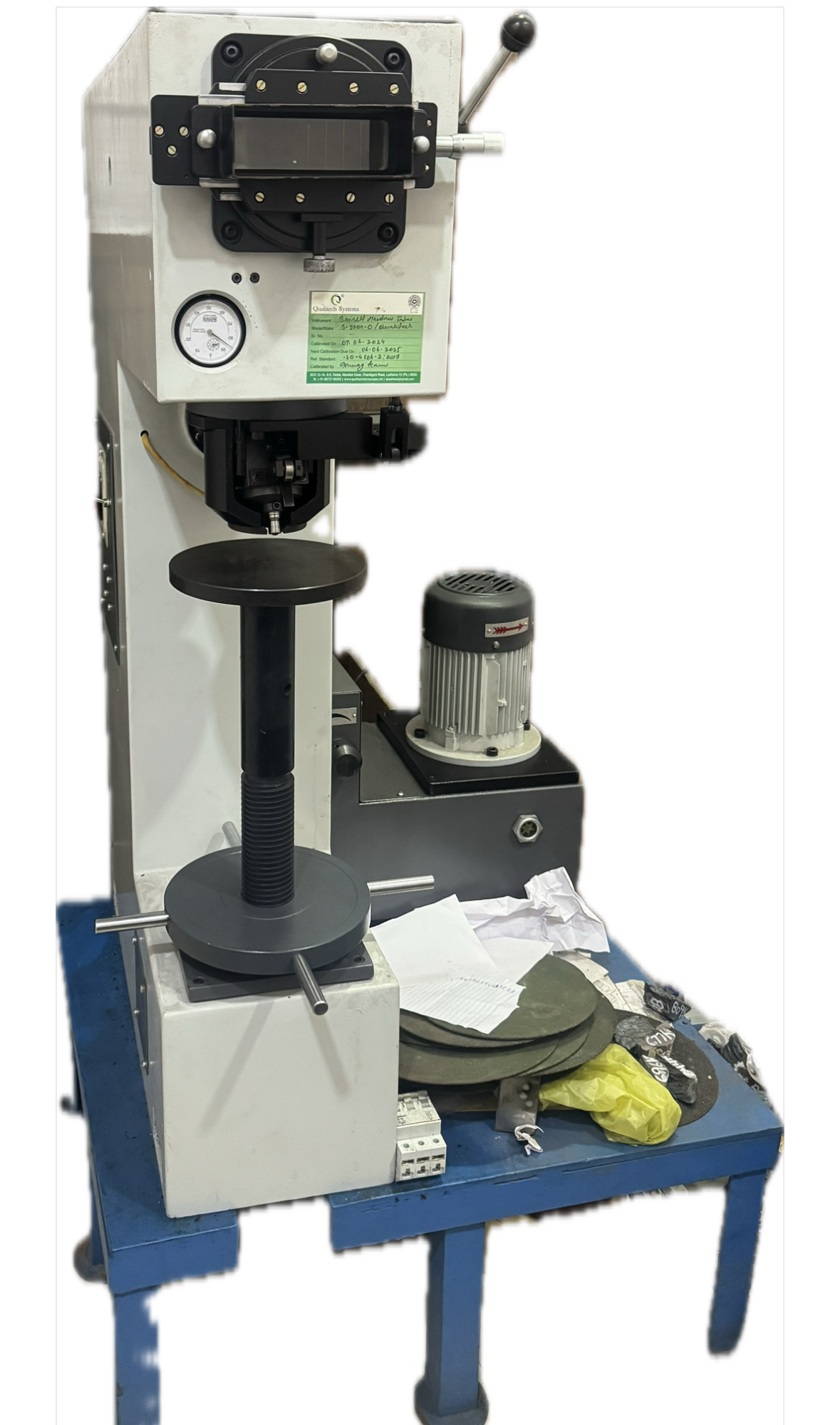

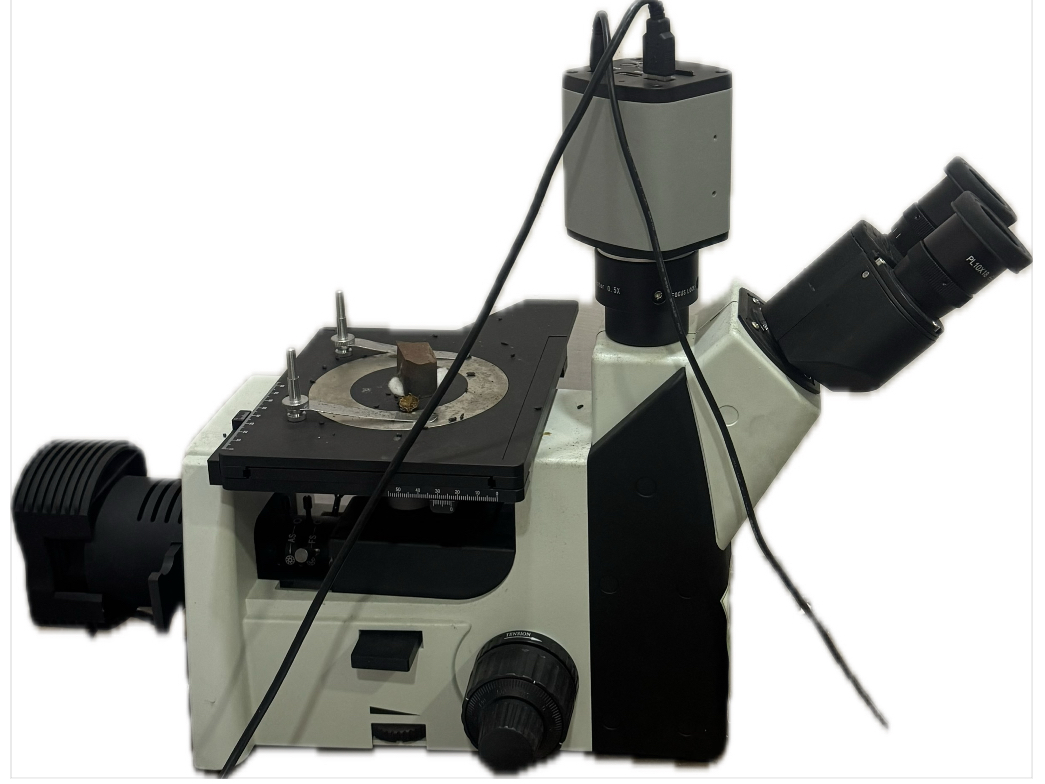

Raj Agro Industries has comprehensive mechanical & Physical testing facilities that include impact testing, tensile testing and non-destructive testing. The organization uses the most advanced equipment such as ultrasonic testing and highly sensitive mobile spectrometer, Brinell hardness testing machine.
